ULD & Pallets

A ULD (Unit Load Devices) is a device used to move cargo being shipped as airfreight. More specifically, a ULD is used to consolidate cargo in order to assist with the loading process onto an airplane.

The first three letters of a ULD code are perhaps the most important. They are used to identify the type, size and shape of the ULD. This information is vital in determining not only the type of cargo it can contain but also the aircraft it is compatible with



Unit Load Devices (ULDs) come in two forms: Containers and Pallets.

Both pallets and containers allow a large quantity of cargo to be bundled into a single unit, which can be used on wide-body aircraft and certain narrow-body aircraft.

Cargo on pallets are secured by a net, which is attached to the pallet’s rim. Containers, also known as cans and pods, are typically lightweight structures comprising a base, a frame with side and roof panels, and a fabric or solid door. There are many different types of containers. Some are collapsible, some are insulated, and others are ventilated or refrigerated and so on.



Below images describes the main Unit Load Devices (ULDs) used by AEROTRANSCARGO aircraft for air cargo operations.

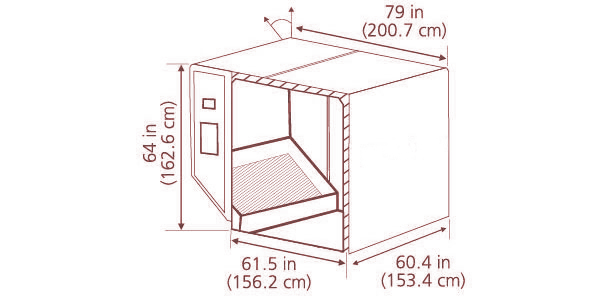

uld1

AKE

Lower deck

Suitable for: 747, 777, A330

Maximum gross weight: 1,588 kg (3,500 lb)

Tare Weight: 100 kg (220 lb)

uld2 (1)

AMJ

Main deck

Suitable for: 747F

Maximum gross weight: 6,804 cm (15,000 lb)

Tare Weight: 355 kg (781 lb)

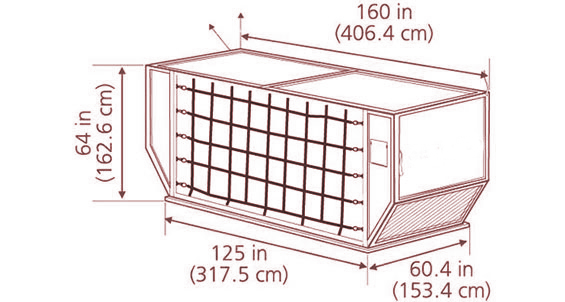

uld3

PLA

Lower deck

Suitable for: 777, 747

Maximum gross weight: 3,175 kg (7,000 lb)

Tare Weight: 168 kg (370 lb)

uld4

HMA stall

Main deck

Suitable for: 747F, 777F

Maximum gross weight: 3,500 kg (7,716 lb)

Tare Weight: 1,310 kg (2,888 lb)

uld5

AKN

Lower deck

Suitable for: 777, 747

Maximum gross weight: 1,588 kg (3,500 lb)

Tare Weight: 129 kg (284 lb)

uld6

RKN

Lower deck

Suitable for: 777, 747

Maximum gross weight: 1,588 cm (3,500 lb)

Tare Weight: 82 kg (181 lb)

uld7

RAP

Suitable for: 777, 747

Maximum gross weight: 4,620 kg

LD-1

Suitable for : 777 , 767 , 747 , 787

Maximum gross weight : 1,588 Kg

LD-6

Suitable for : 777 , 787 , 747

Maximum gross weight : 3,175 Kg

LD-9

Suitable for : 777 , 787 , 747

Maximum gross weight : 4,624 Kg

LD-11

Suitable for : 777 , 787 , 747

Maximum gross weight : 3,176 Kg

LD-39

Suitable for : 747

Maximum gross weight : 5,035 Kg

M-1

Suitable for : 747, 777F

Maximum gross weight : 6,804 Kg

M-1H

Suitable for : 747, 777F

Maximum gross weight : 6,800 Kg

M-2

Suitable for : 747, 777F

Maximum gross weight : 11,340 Kg

pallets1 (1)

PAG, PAJ, P1P

Suitable for: Widebody: All aircraft lower holds

Lower Deck, Main Deck

Maximum gross weight: 6,033 kg (13,300.5 lb)

Tare Weight: 105 kg (231 lb)

pallets2

PLA

Lower Deck

Suitable for: 777, 747

Maximum gross weight: 3,175 kg (6,999 lb)

Tare Weight: 91 kg (200 lb)

PRA 16footer

PRA(16 Foot Pallet)

Main Deck

Suitable for: 747F, 777F, A330

Maximum gross weight: 11,300 kg (24,911 lb)

Tare Weight: 410 kg (904 lb)

pallets4

PMC

Main Deck, Lower Deck

Also known as: P6P

Suitable for: 777, 747, A330

Maximum gross weight: 6,804 kg (15,000 lb)

Tare Weight: 120 kg (265 lb)

pallets5

PGA(20 Foot Pallet)

Main Deck

Also known as: P7A, P7E, P7F, PSG, PGE, PGA

Suitable for: 777, 747 (freighter)

Maximum gross weight: 13,608 kg (30,000 lb)

PYB 1

PYB

Main Deck ( QL & QR Position)

Suitable for : 747 F

Maximum gross weight : 18,14 kg

Tare Weight : 60 kg
